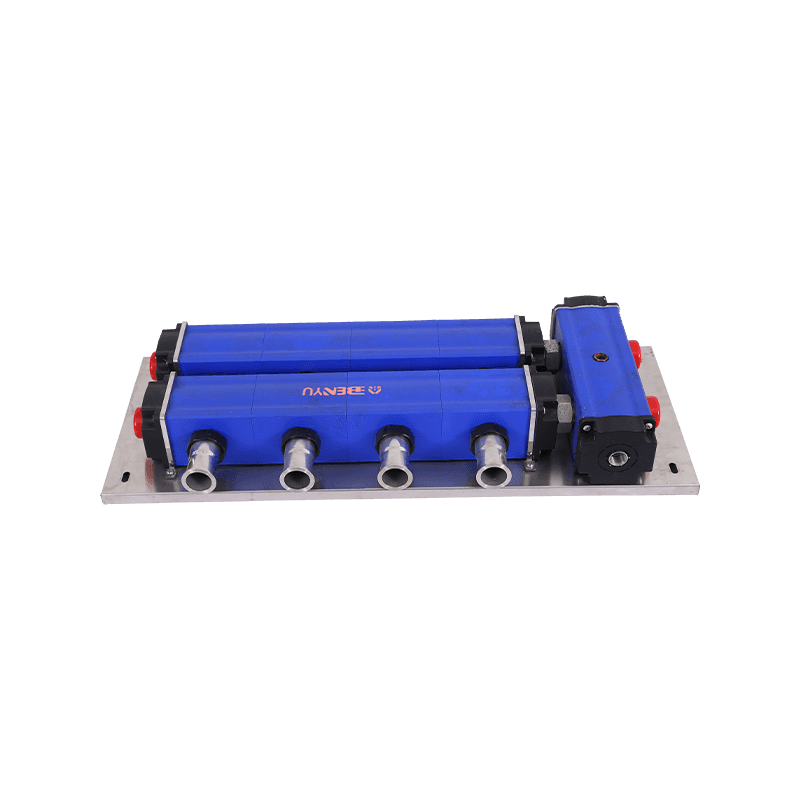

Decoupling Tank（Hydraulic Separator）Integrated System

The Decoupling Tank Integrated System is an advanced water management solution designed to optimize water mixing, distribution, and energy efficiency in a variety of applications. Available in both square and round configurations, this system is engineered to provide consistent performance, durability, and ease of maintenance. Its versatile design makes it suitable for use in both residential and commercial heating systems, as well as industrial water management.

PREV：Decoupling Tank（Hydraulic Separator）NEXT：No next article

Product Parameter

Parameters

Tank Material	304 stainless steel
Welding Process	Hydrogen arc welding, laser welding, fiber welding
Model	Basic / Standard / Updated
Design	Thermal Insulation / Fixed Plate / LOGO Design
Surface Treatment	Mirror Polish / Black Spray Paint / Demagnetization Electroplating
Accept Non-Standard Customization

BASIC MODEL

Shape	Number Of Ways	Tank Specification	Pressure(bar)	Insulation Material
Round Tube	2	Φ89-DN32	10	Foamed Polypropylene
Round Tube	3	Φ89-DN32	10	Foamed Polypropylene
Round Tube	4	Φ89-DN32	10	Foamed Polypropylene

STANDARD MODEL

Shape	Number Of Ways	Tank Specification	Branch Specification	Pressure(bar)	Insulation Material
Round Tube	2	Φ76-DN25	50*50	10	/
Round Tube	3	Φ76-DN25	50*50	10	/
Round Tube	4	Φ76-DN25	50*50	10	/

UPDATED MODEL

Shape	Number Of Ways	Tank Specification	Branch Specification	Pressure(bar)	Insulation Material(Optional)
Square Tube	2	70*70 DN32	60*60	10	Thermal Insulation Cotton / Plastic Casing
Square Tube	3	70*70 DN32	60*60	10	Thermal Insulation Cotton / Plastic Casing
Square Tube	4	70*70 DN32	60*60	10	Thermal Insulation Cotton / Plastic Casing

Product Advantages

The System, whether in its square or round configuration, is designed to optimize water flow. The square design promotes efficient water mixing by reducing turbulence and ensuring even temperature distribution. Meanwhile, the round design facilitates better water circulation, which enhances the thorough mixing of water, resulting in consistent performance.

Product Features

1. Precision Control
- Temperature Regulation: The Decoupling Tank Integrated System is equipped with advanced temperature control mechanisms that ensure stable and consistent water temperature, which is crucial for maintaining optimal performance in both heating and water distribution systems.
- Flow Management: The system also allows for accurate adjustment of water flow rates, making it adaptable to various operational requirements. Therefore, the system can meet the specific demands of different applications, from residential heating to industrial water management.
- Longevity: The robust construction of the system ensures its longevity, which is particularly important in environments where the system is exposed to harsh conditions or continuous operation.

2. Durable Construction
- High-Quality Materials
- Robust Design
- Low Maintenance

Zhejiang Benyu HVAC Technology Co., Ltd.

Zhejiang Benyu HVAC Technology Co., Ltd. was founded in 2005. The company is located in Xinguang Industrial Zone, Liushi, which has convenient transportation and is near the logistics center. As a Custom Decoupling Tank（Hydraulic Separator）Integrated System Manufacturers, Our primarily producing supporting products for floor heating and water heating equipment, such as Underfloor Heating Manifold Cabinet/Back Panel, Balanced Mixing Center, Decoupling Tank & Integrated System, Underfloor Heating System Accessories, Magnetic Filter, Hydraulic Balanced Pressure Divider, Underfloor Heating Intelligent Controller, etc. The company has a 7,000 square-meter plant, equipped with more than 80 pieces of equipment and over 50 skilled workers, along with 7 technical experts, serving the national heating industry. The company has transformed many patents into system integration components, is committed to providing energy-saving and efficient heating solutions, and collaborates with partners to offer customers mature and reliable systems and services.
