The Hydraulic Separator with Manifold is one of the important components of the multi-loop underfloor heating system. This product is a multi-functional and efficient solution designed to optimize the performance of heating systems. This product has a newly added demagnetization function, which can effectively prevent the formation of iron element scale adhering to the tank after it rusts.
Parameters
| Tank Material | 304 Stainless Steel |
| Welding Process | Hydrogen arc welding, laser welding, fiber welding |
| Surface Technology | Demagnetization Electroplating |
| Shape | Square |
| Color | Silver White |
| The product contains the following accessories | 1. 1/2” Automatic air vent(1 pcs) 2. 1/2” Drain valve(1 pcs) 3. Support frame(1 set, including 2pcs) 4. Magnetic rod(1 pcs) 5. Plug(1 pcs) 6. Stainless steel filter(1 pcs) 7.Thermomanometer(1 pcs) |
| Shape | Inlet Thread | Outlet Thread | Specification of Main Tank and Branch(mm) | Number of Circuits | Distance between the Outlets | Product Length(mm) |
| Square | 1" | 1" | 80*80+60*60 | 2+1 | 125mm | 664 |

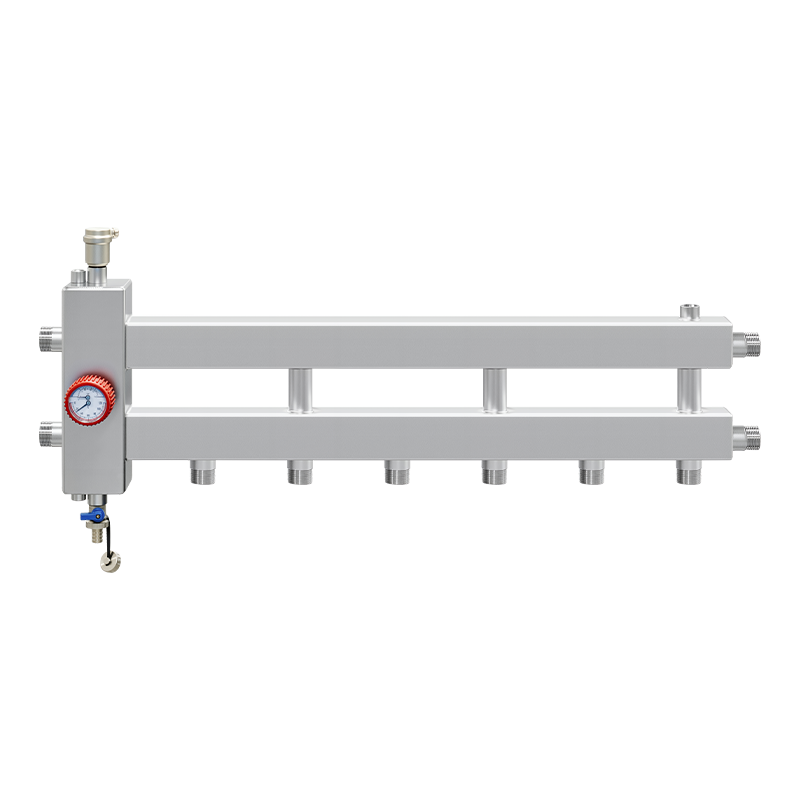

| Square | 1" | 1" | 80*80+60*60 | 3+1 | 125mm | 914 |

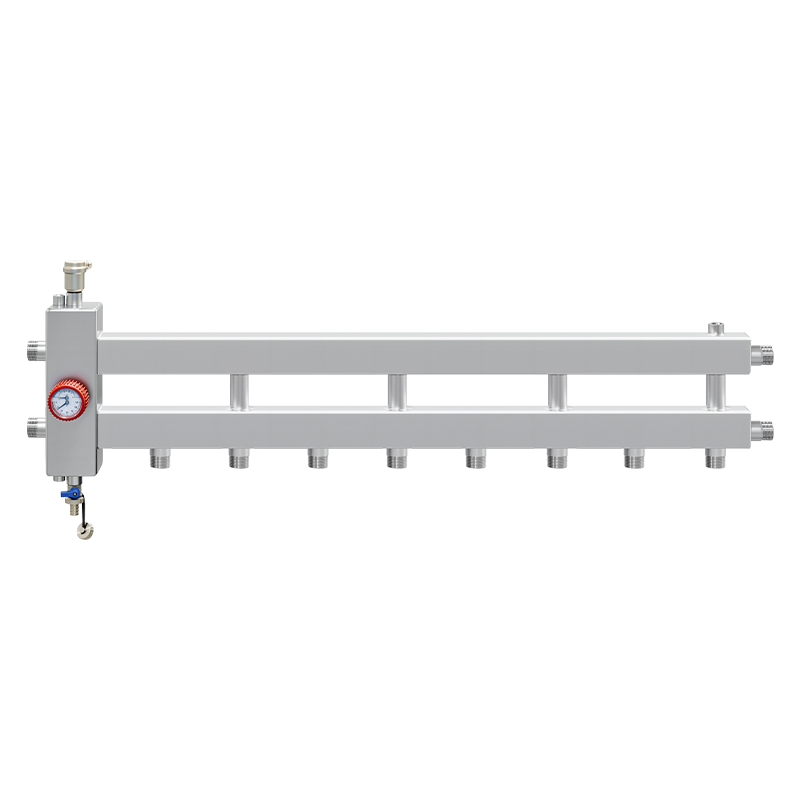

| Square | 1-1/4" | 1" | 80*80+60*60 | 4+1 | 125mm | 1164 |

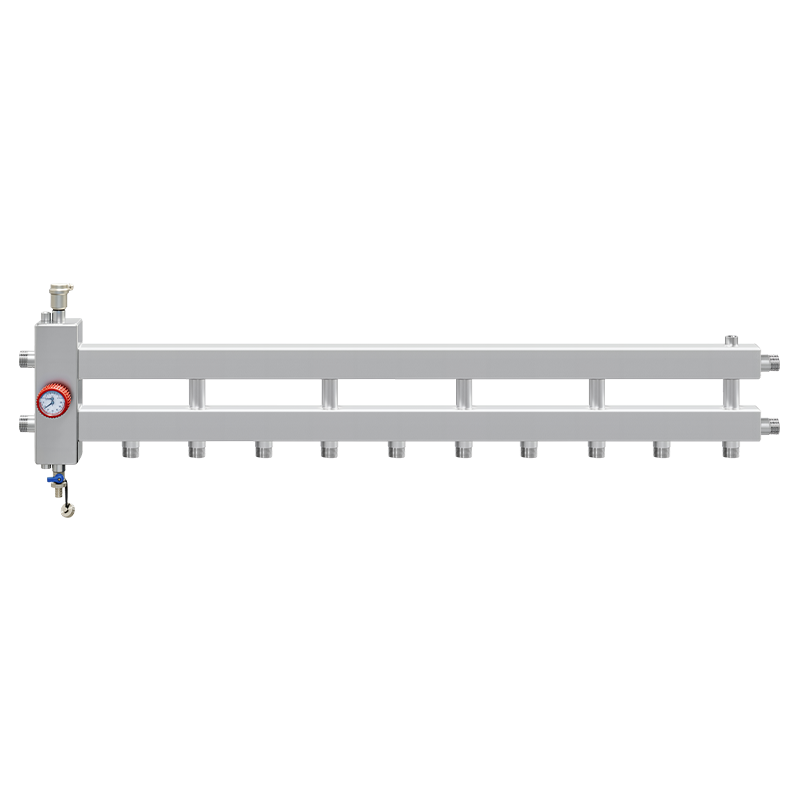

| Square | 1-1/4" | 1" | 80*80+60*60 | 5+1 | 125mm | 1414 |

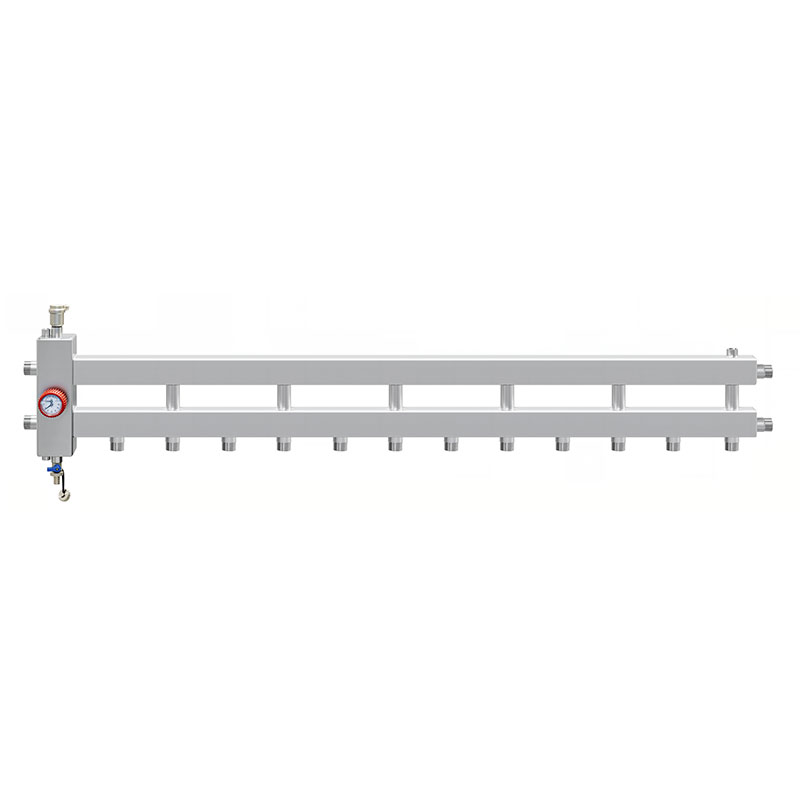

| Square | 1-1/4" | 1" | 80*80+60*60 | 6+1 | 125mm | 1664 |
Zhejiang Benyu HVAC Technology Co., Ltd. was founded in 2005. The company is located in Xinguang Industrial Zone, Liushi, which has convenient transportation and is near the logistics center. As a Custom Hydraulic Separator with Manifold Manufacturers, Our primarily producing supporting products for floor heating and water heating equipment, such as Underfloor Heating Manifold Cabinet/Back Panel, Balanced Mixing Center, Decoupling Tank & Integrated System, Underfloor Heating System Accessories, Magnetic Filter, Hydraulic Balanced Pressure Divider, Underfloor Heating Intelligent Controller, etc. The company has a 7,000 square-meter plant, equipped with more than 80 pieces of equipment and over 50 skilled workers, along with 7 technical experts, serving the national heating industry. The company has transformed many patents into system integration components, is committed to providing energy-saving and efficient heating solutions, and collaborates with partners to offer customers mature and reliable systems and services.
